i-Orbital 5000 Power Source

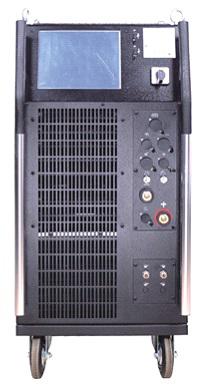

iOrbital 5000 distributed orbital welding power source is an automatic programmable power source designed by Huaheng. adopting the world’s most advanced technology. This power source is composed of the three following items: power system and control, water cooling tank and integrated truck. This power source has the characteristic of advancement, digitization, intellectualization, generality, and reliability and easy to operate. PC control is adopted for the control system. It is an open and upgradable 32 digits embedded operating system.
This power source is designed for tube/tube, tube to tube/sheet welding. It could be used with all TC products, TOK products, TOA products, TP060/TP040 welding head and external wire feeding machine that manufactured by Huaheng Welding Co., Ltd. It could also be used together with GTX products and other special projects system through upgrade. It usually applies in the tube/tube, tube to tube-sheet welding of chemical industry, food industry, medical industry, electric pipeline, all sorts of heat exchangers, engineering machinery, boiler, military industry and nuclear power industry

>> Adopts Windows embedded operating system, easy to operate
>> Easy to realize USB flash disk program import and export. Easy to replace welding procedure programs. 200 programs of different welding parameters could be stored.
>> Step rotation for current and wire feeding.
>> 20 levels and the parameters could be changed according to technology requirements. Real time AVC is adopted and three tracking modes which are: peak-value tracking, base value tracking, peak-value and base-value tracking.
>> Memory function of parameter adjusting is adopted. Easy to store and display the adjusted parameter during the process of welding.
>> Simulation function is provided during the process of welding. Easy to discover the disadvantages in the actual welding process in advance.
>> Real time display for the controller. User could view all kinds of states during the process on the controller. The OSC speed, OSC center, OSC width, currentand other welding parameters could be adjusted anytime during the process of welding to meet special requirements
>> Time and angle switch can be realized.
>> Arc ignition current and arc retraction current settings.
>> Welding voltage/current/distance/degree real time display. Easy to realize automatic attenuation.
>> Precisely setting for the distance between the tungsten electrode and work-piece. Touch-lift value setup. Two types of arc ignition: high frequency arc ignition and touch-lift arc ignition. Choose one type through programming.
>> Equipped with water cooling system to make sure the system operate continuously.
>> Improved failure detection intelligent control.
>> Chinese/English interface
>> Optional off-line programming software is available.

Type	Inverter
Welding Current	5～500A
Duty Cycle（20℃）	500A 60% /310A 100%
Open Voltage	72V
Input Voltage	380V±10% 50/60Hz
Power	34 KW
Display	Industry PC
Control Function	Industry PC, Gas control, Current control, Rotation control, Wire feeding control, OSC, AVC, Failure detection intelligent control
Storable Programs	100 programs could be stored on other storage devices
Levels	20
Display Screen	10.4”
Internal Memory	4G
Print	Integrate printer
Water Pump Head	30m/0.3Mpa
Water Tank Volume	15 L
Weight(without refrigerant)	110Kg
Appearance/Dimensions	1081mm×990mm×455mm
Manufacturing Standards	GB15579-2004 IEC60974
