Applications
Pipe Prefabrication
Medium Wall Thickness Pipe MIG
Products

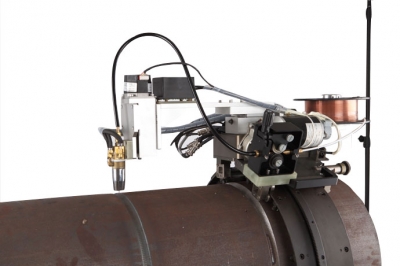

MIGTRACK60 Pipe-Heads
Information
MIGTRACK60 application in medium wall thickness pipe:
Workpiece Type: Oil/Gas main pipe and branch pipe construction
Joint Connection Type: Pipe to Pipe
Pipe Diameter：Φ180-Φ1500mm
Wall Thickness：6-20mm
Welding Process: MAG
System Features:
>>
Half and Half MAG Welding to complete the whole workpiece
>>
Preperation：the bevels should be done by machining, fixed together via tack welding; ensure the fit-up gat is 3~6mm pipe to pipe, and the misalignment less than 1mm
>>
Gear Transmition, rotating stably
>>
Dual-water-cooling torch, high duty cycle
>>
Special wire feeding system, short wire feeding distance to guarantee stability
