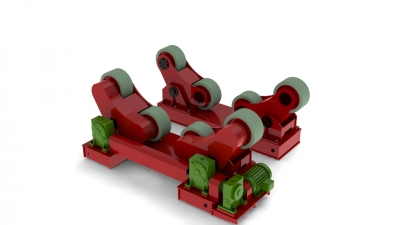

  • This rotator is main used for welding, fit-up and polishing of the round cylinder in industrial like wind power, pressure vessel, petrochemical, piping, steel profile, boiler, ship yard, cladding repair etc. Adopts worm gear motor driving the four rollers, achieves smooth full-gear transmission. The four rollers will swing to different angle to fit for different work piece diameter. The rollers are polyurethane cover and can also be customized to steel for special usage. Speed can be displayed and AC variable controlled by remote pendant.
  • >> Data will be enter..
  • Specification

    FGJ-10S

    FGJ-20S

    FGJ40-S

    FGJ60-S

    FGJ80-S

    Payload(T)

    10

    20

    40

    60

    80

    Work piece
    Diameter

    Min.(mm)

    320

    500

    600

    750

    850

    Max.(mm)

    3600

    4300

    5200

    5500

    6000

    Motor power(kw)

    1.1

    1.5

    3

    4

    4

    Speed(mm/min)

    100-1000

    Speed adjustment

    AC variable speed

    Polyurethane roller

    Diameter(mm)

    330

    330

    450

    450

    490

    Width(mm)

    100

    100

    200

    200

    240

    Dimension

    Power

    Length(mm)

    1800

    2200

    2500

    2800

    3040

    Width(mm)

    830

    960

    1150

    1240

    1540

    Driven

    Length(mm)

    1600

    1900

    2200

    2400

    2670

    Width(mm)

    420

    490

    530

    590

    620

    Height(mm)

    730

    850

    970

    1130

    1240

    Code

    330201-0000-0000-00

    330202-0000-0000-00

    330203-0000-0000-00

    330204-0000-0000-00

    330205-0000-0000-00
