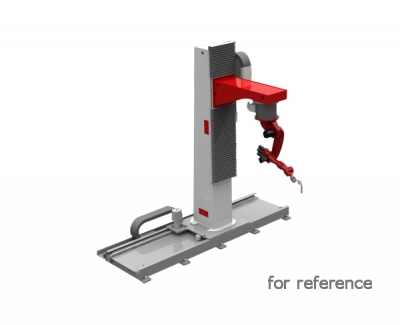

Ground Linear Rail


Programmable external axes, matching with robot to extend the work range

Applications

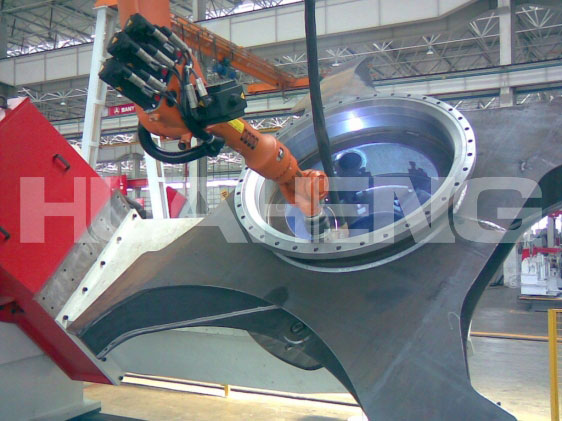

Excavator Welding Line
Loader Components
  • The ground linear rail is divided into light duty and heavy duty types. Light one can be used with robot for an extension of work range. Heavy one can be used with C frame and robot for an extension of work range.
  • >> Data will be enter..
  •     HLV10 HLV40 HLV40-123
    Speed X axis 30 m/min 10 m/min 60 m/min
      Y axis     60 m/min
      Z axis     20 m/min
    Repeatability   ±0.1 mm ±0.2 mm ±0.1 mm
    Payload     4000 kg
    Effective Travel X axis 1400 mm 20000mm 170000 mm
      Y axis     800 mm
      Z axis     1000mm
