Plate to Plate Seamers

The sheet to sheet welding system is designed for big sheet to sheet welding, it can use PLASMA, TIG, PLASMA & TIG and MIG/MAG welding process. The material can be stainless steel, aluminum alloy, titanium alloy and so on. It is widely applied in various application of food machinery, dyeing and finishing equipment, power switch bus bar chamber, medical instrument, special material pressure vessels, pipeline for electric power, air condition shell, and so on.

Applications

Special Purpose Vehicle

Composite Board Manufacture

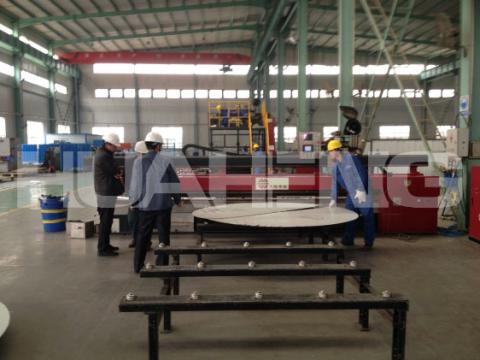

Shell Cover Manufacturer

Brief

Features

Specification

The longitudinal seam welding system is used to weld inside and outside seams of medium wall thickness tank; It supports PAW, TIG and MIG/MAG welding process. The material processed can be carbon steel, stainless steel, aluminum alloy, titanium alloy and so on. It is widely applied in various applications of food machinery, dyeing and finishing equipment, power switch bus bar chamber, medical instrument, special material pressure vessel, electric power pipeline, air conditioner shell and so on. The fixture can be added with height blocks and protection devices.

>> Use copper made finger clamp to achieve small welding distortion and high welding quality;
>> Suitable for 0.4mm-12mm wall thickness sheet welding;
>> Suitable for TIG, MIG/MAG, PAW and PLASMA+TIG welding process;
>> Suitable for various materials, such as carbon steel, stainless steel, titanium alloy and aluminum alloy, etc.
>>Optional to choose standard or customized mechanism according to work piece size.

Model	HP3000	HP6000	HP8000	HP10000
Maximum welding length for single torch (mm)	3200	6160	8160	10160
Maximum welding length for double torch (mm)	2700	5700	7700	9700
Sheet wall thickness	1.0-12	2.0-12	2.0-12	2.0-12
Maximum single side pressure (kgf/cm)	30	30	30	30
Adjustable fingers distance (mm)	10～40	10～40	10～40	10～40
Welding trolley speed (mm/min)	60～1200	60～1200	60～1200	60～1200
Cushion vertical traverse (mm)	Motor driven 60	Motor driven 60	Motor driven 60	Motor driven 60
Dimension (LxWxH) (mm)	6120x1200x1650	9200x1200x1650	11150x1200x1700	13150x1200x1800
Weight (Ton)	5.4	8.9	11.8	13.9
