  • >> Used powerful IGBT & Advanced Inverter Control Technology.
  • >>With PWM Control Technology & Constant Current(CC) output control, Welding current can be exactly controlled.
  • >>Specially designed for DC TIG/PULSE TIG/MMA welding process.
  • >>With inbuilt HF (High Frequency) unit helps to start Arc easily for TIG welding process.
  • >> With 2T & 4T functions.
  • >> Adjustment of Pulse current, base current
  • >>Adjustment of flow of gases during welding
  • >>With auto-protection function of over current & over heat.
  • >>With high quality & energy savings up to 30%.
  • >>Machine can weld all kinds of metal e.g. SS, CS Etc.

  • Model

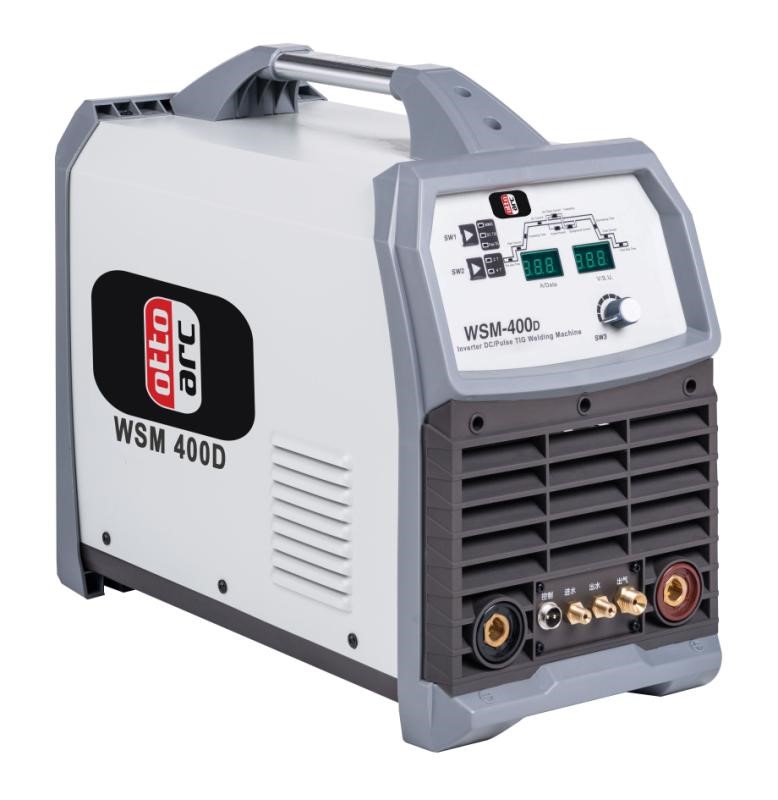

    WSM 400D
    WSM 400G

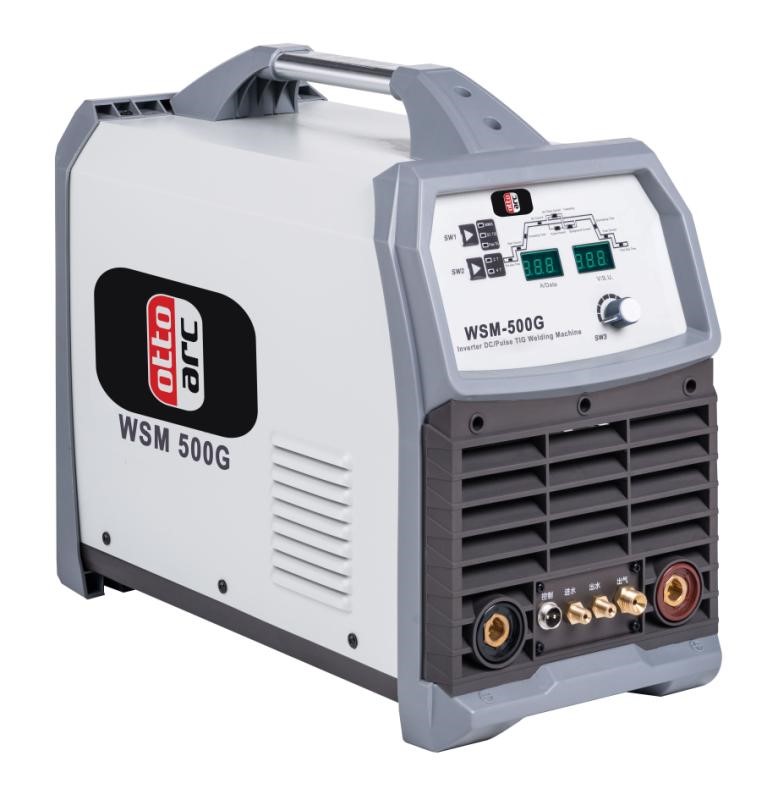

    WSM 500G

    Rated Supply Voltage(V)
    415AC
    415AC
    415AC
    No Load Voltage(V)
    74
    74
    68
    Rated Input Capacity(KVA)
    8.4
    13.2
    25
    Rated Welding Current (A)
    10-300
    10-400
    10-500
    Rated Duty Cycle(%)
    60%
    60%
    60%
    Insulation Class
    H
    H
    H
    IP Code
    IP21S
    IP21S
    IP21S
    Applied Electrode
    1.6-5.0
    Machine size
    625X340X616
    620X310X570
    620X310X570
    N.W
    40KGS
    37KGS
    40KGS
