Storage Tank

ApplicationsOthers

Storage Tank

Welding System	Plate-to-plate longitudinal seam welding system, Internal longitudinal seam welding system, Cicumferential seam welding system
Welding Process	PAW+TIG combination
Material	Stainless steel
Cylinder Length	5,000~7,000mm
Cylinder Diameter	OD1,500~2,300mm
Thickness	3~10mm
Seam Type	Butt joint
Application	Storage tank industry etc.

Feature:

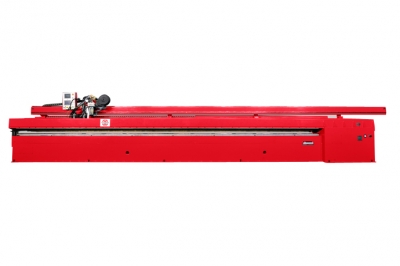

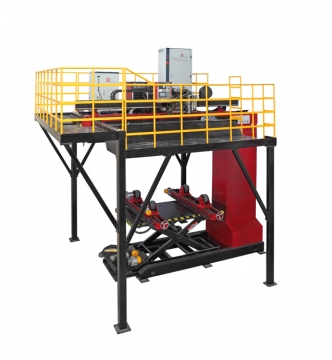

>> Use of Plate-to-plate longitudinal seam welding system, Internal longitudinal seam welding system, and Cicumferential seam welding system to build up storage tank welding production line
>> PAW+TIG combination welding, i.e. plasma keyhole process for root pass and TIG process for covering, full penetration with nice appearance and up to 1.5 times faster than single torch welding

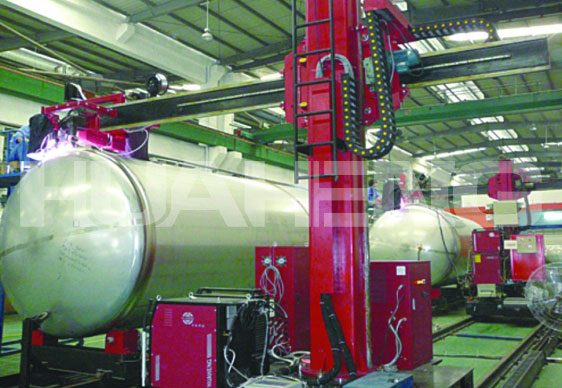

>> The welding production uses 2 units of plate-to-plate longitudinal seam welding systems + 1 unit of internal longitudinal seam welding system + 2 units of circumferential seam welding systems to achieve 10~12 units of standard storage tanks
>> Stable PLC control platform to ensure longtime working
>> Modular design to minimize design and production period
>> More than ten years PAW application experience with mature welding procedure instruction and service capability Compatible with storage tank overalll production line and successfully used in 4 customers in China
>> Turnkey project basis
