i Orbital 160 Power Source

This power source has been developed and manufactured with our 20 years’ experience, easy operation, intelligent and stable. The PLC controlling system combines with touch HMI can achieve centralized setting and storage of the parameter and DSP synchronized controlling.
Apart from that, it offers stable current output and accurate control of its rotation and shielding gas. TM160 is a specially designed orbital welding power source for tube to tube welding applications with thin wall, and widely used in industries of chemical, food, pharmaceutical, semiconductor industry, and dairy products. It can be integrated with all TC series closed welding heads.

>> Six operation interfaces, Working, Programming, Settings, files, library.
>> Welding programs are generated automatically, especially for thin wall fusion welding applications

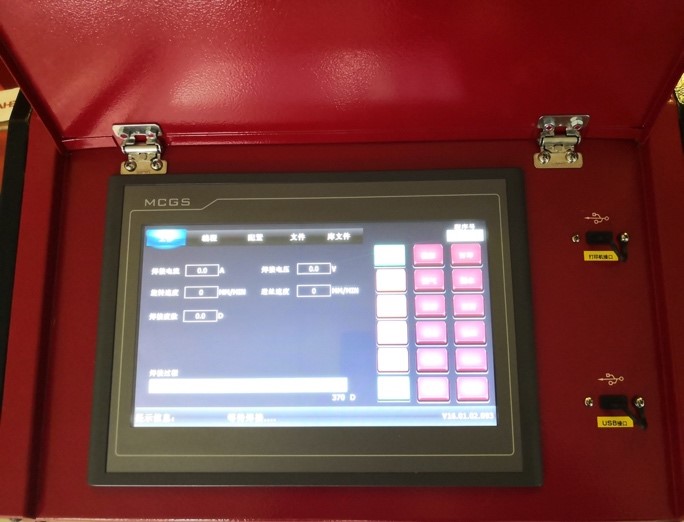

>> Industrial color touch screen for controls.
>> Very light weight of 24 Kg, Small in size, Very easy to use for site applications.
>> Very easy for transportation
>> Modular Design and Easy Maintenance.
>> 999 Program Internal Memory Storages with External USB Support for data communication.
>> Real-time Welding Parameter Recording during welding process.
>> Control Pendant Display for Real-time Data Monitoring.
>> Parameter Adjustable during Welding Process for some Special Welding Cases.
>> Built-in Various Welding Head Parameters for Accurate Motion Control.
>> Perfect Fault Detection, Error Display, Modular Design for Easy Maintenance.
>> Option for Offline Programming or Offline Printing.

Model	TM160
Type	Inverter
Current	5-160A
Duty Cycle	160A 60%/(xxx)A 100%
Open Circuit Voltage	42V
Input Voltage	220V+ 10% 50/60HZ
Power	5KVA
Cooling	Integrated Water Cooler
Display	Industrial PC
Control Function	Gas Control/Current Control
Control Function	Rotation Control/Wire Feeding Control
Program Storage	999
Numbers of Level	20
CPU	1.1G
Memory	1G
Hard disk	2G
Print	Optional External Thermosensitive Printer, Connecting to power source with USB
Insulation/Protection Class	F / IP21S
Weight	24Kg
Dimension	460mm350mm250mm
Manufacture Standard	GB15579.1 2013
