Otto arc Welding Machine

IGBT inverter DC MIG Welding

Important Links

IGBT Inverter MIG Welding
IGBT MMA Welding Machine
IGBT Inverter DC TIG Welding Machine
IGBT Inverter DC Air Plasma Cutting Machines
  • >>Powerful IGBT's are used, with powerful inverter & PWM technology.
  • >>Constant current (CC) output control.
  • >>Each Machines contain 4 IGBT's.
  • >>MIG/MAG (GMAW), Flux cored (FCAW) and MMA or Stick (SMAW) welding process.
  • >>Can weld all kinds of metal, e.g. stainless steel, carbon steel, etc.
  • >>Excellent arc characteristics. Good welding performance and little spatter.
  • >>With two gun switch optional models of 2T and 4T.
  • >>Auto protection functions of over-current and over-heat.
  • >>High welding speed and duty cycle.
  • >>High quality and energy savings up to 30%.

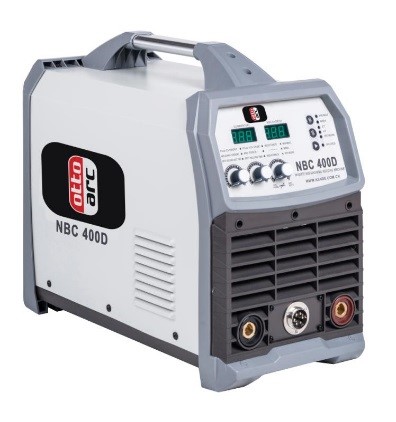

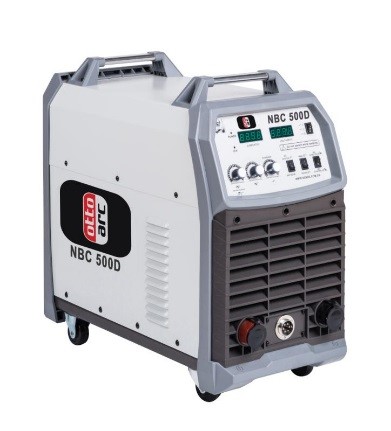

  • Model
    NBC 270
    NBC 400D
    NBC 500D

    Rated Supply Voltage(V)
    415VAC
    415VAC
    415VAC
    No Load Voltage(V)
    56
    56
    67
    Rated Input Capacity(KVA)
    11
    19.5
    23.5
    Rated Welding Current (A)
    40-270
    40-350
    40-500
    Rated Duty Cycle(%)
    60%
    60%
    60%
    Insulation Class
    H
    H
    H
    IP Code
    IP 23S
    IP 21S
    IP 21S
    Usable Wire
    0.8-1.0
    0.8-1.6
    0.8-1.6
    Machine size
    520X260X430
    600X310X540
    620X310X570
    N.W
    16
    35
    39
