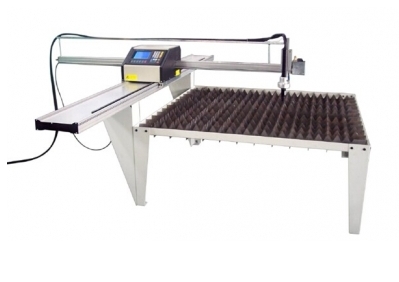

MiniCut CNC Flame and Plasma Cutting System

HUAHENG Minicut CNC machine is specially designed for handling all the basic cutting needs in the smaller plate formats which can be used for Training & producing small thermally cut parts. Minicut is portable and technologically advance product, specially designed & engineered to serve simplified cutting task, affordable and easy to learn. The thoughtful design makes it easy to install and use.
Reliable and stable design provide wings to small scale workshops, In-house fabrication shops, Educational Institutes and , in-house maintenance department of process industries.
Principally Equipped with oxyfuel cutting system produces high quality cut part, it can be easily modified to use plasma system as well to flexibility in cutting process.
It is not only saving the cost on civil work or installation it is also very convenient for handling and floor space management. Lowest investment, installation, maintenance & running cost makes it deliver lowest cutting cost per piece for training & industrial use.

>> High strength rail design, stable and smooth motion without noise for high speed and precision application.
>> Simple HMI for easy operation
>> Integrated portable CNC cutting machine function for carbon steel, stainless steel and non-ferrous material cutting.
>> Accept CAD file as cutting program file, USB drive file transfers for any graphic cutting application.
>> Optional to choose Oxyfuel or plasma cutting process.
>> Multi-language selection, i.e. Chinese, English, French, Russian Portuguese.
>> Automatic power-off memory and automatic recovery function.
>> Optional to choose arc voltage height control or simple motorized control;
>> Working status indicator.
>> Position protection and proximity switch positioning.
>> PWM pulse width modulation control.

Effective cutting range	1500*3000mm
Torch height adjustment	Plasma AVC Control
Input voltage	AC220, single phase
Input power	Approx. 220W
Cutting process	Suitable for plasma & Oxyfuel
Drive	Single drive, gear and rack transmission
Cutting speed	0~3000mm/min
