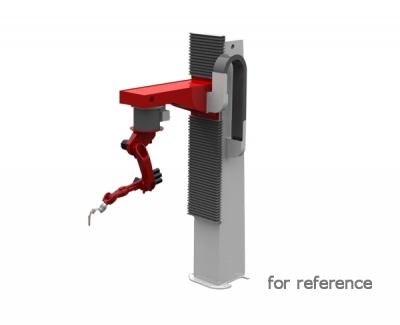

C Frame


Programmable external axes, matching with robot to extend the work range

Applications

Steam Turbine Blade
Hydrant Turbine Component
  • The C frame is programmable rotation axes and lifting axes made according to customer requirement, suitable for standing and hanging robots. It matches with robots, making the work range larger for processing big and complex work-pieces.
  • >> Data will be enter..
  •   Single Shaft Movable Rotatable & adjustable
    C Frame Height 3418mm 3418mm 3418mm
    Arm Center Distance 147z0mm   147z0mm
    Rotary Degree ±180° ±180° 315°
    Rotary Speed 18°/sec 18°/sec 24°/sec
    Repeatability ± 1.5 arc min ± 0,2 arc mm ± 1.5 arc min
