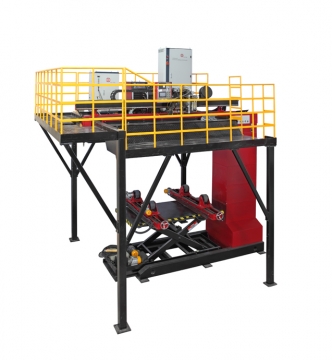

High-precision TIG、Plasma or Plasma + TIG Longitudinal and Circumferential Seam Welding System

• Welding Process: TIG/PAW/P+T
• Material: Stainless Steel
• Diameter: ≤￠3200mm
• Length: ≤6500mm
• Joint Type: Longitudinal Seam, and Circumferential Butt or Overlap Seam

• Feature:
• >> The automatic welding system is specially designed for stainless steel application, with plasma welding process. The key hole penetration effect makes sure one-side welding double-side shaping, as well as higher welding speed and higher welding efficiency

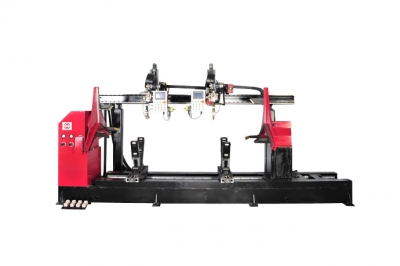

• >> Using Plasma + TIG double torches welding at one time, Plasma for root pass at front, TIG for covering pass after, highly improving the welding quality and efficiency, which can reach 1.3~1.5 times the efficiency of single torch welding
• >> Mainly for vessels of thin-wall thickness less than and equal to 8mm. There is no need of bevel. It can weld single side with double side shaping; For a wall thickness greater than 8mm, a little bevel is needed
• >> Mainly for vessels of thin-wall thickness less than and equal to 8mm. There is no need of bevel. It can weld single side with double side shaping; For a wall thickness greater than 8mm, a little bevel is needed
• >> With the advantage of key hole penetration, there is no bevel with plate wall thickness of 8mm and below, saving time and money on preparation
• >> The energy of arc is much concentrated that the heat effect zone is smaller, thus reducing distortion
• >> With the benefit of high efficiency, it can save the time of using plasma by 4~5 times as compared with manual welding
• >> Modular design, less modification design and production cycle
• >> Huaheng has more than ten years of Plasma application experience in terms of excellent welding process and service ability
• >> Turn-key project
