>> Powerful IGBT's are used, with powerful inverter & PWM technology.
>> Constant current (CC) output control.
>> Each Machines contain 4 IGBT's.
>> DC MMA or Stick (SMAW) welding process.
>> Can weld all kinds of metal, e.g. stainless steel, carbon steel, etc.
>> Excellent arc characteristics. Good welding performance.
>> Specially designed circuit & structure, which can sustain heavy input voltage fluctuations.
>> Machine can weld in a wide range of 180 V to 440 V.
>> The machine is waterproof, moisture proof, corrosion proof, dust proof & Vibration proof.
>> With Hot start, arc force and anti-stick functions.
>> Auto protection functions of over-current and over-heat.
>> High quality and duty cycle.
>> Energy savings up to 30%.

Model

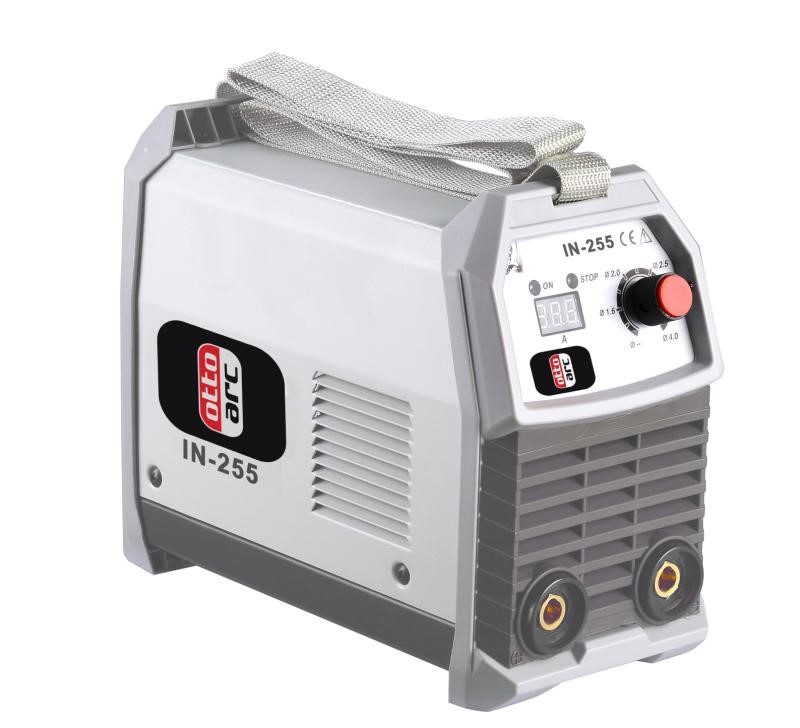

IN-255

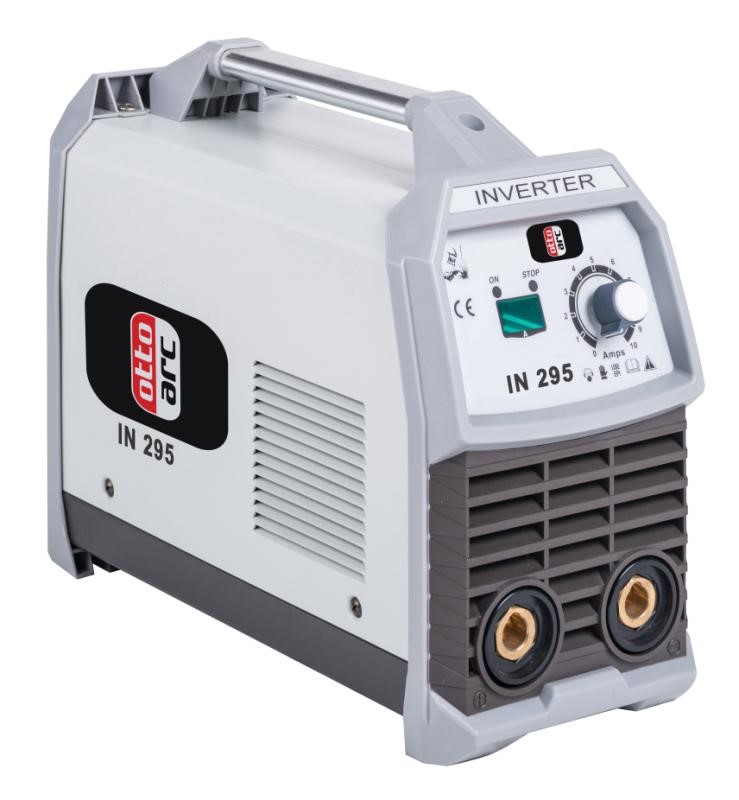

IN-295

IN-295DV

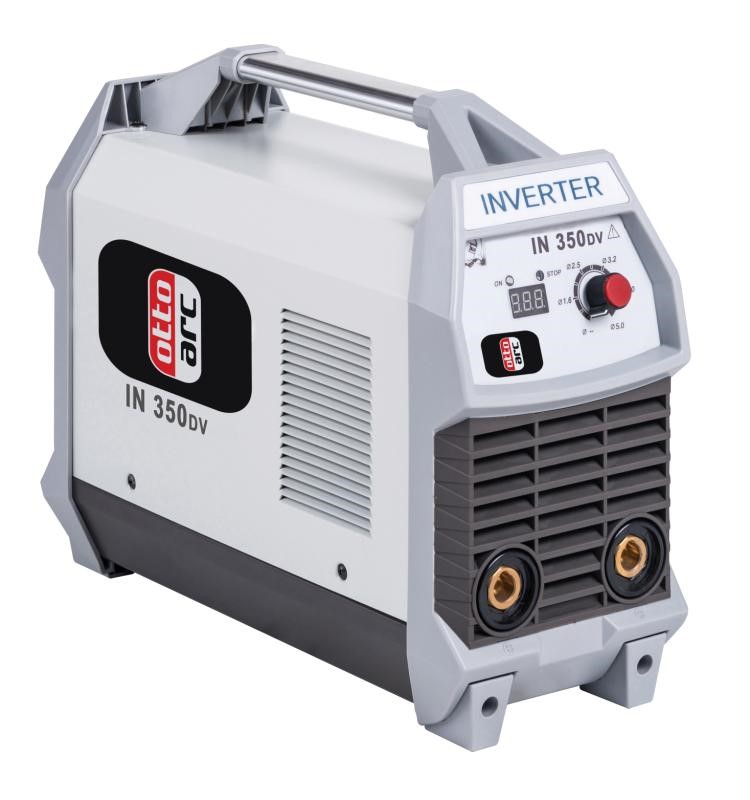

IN-350DV

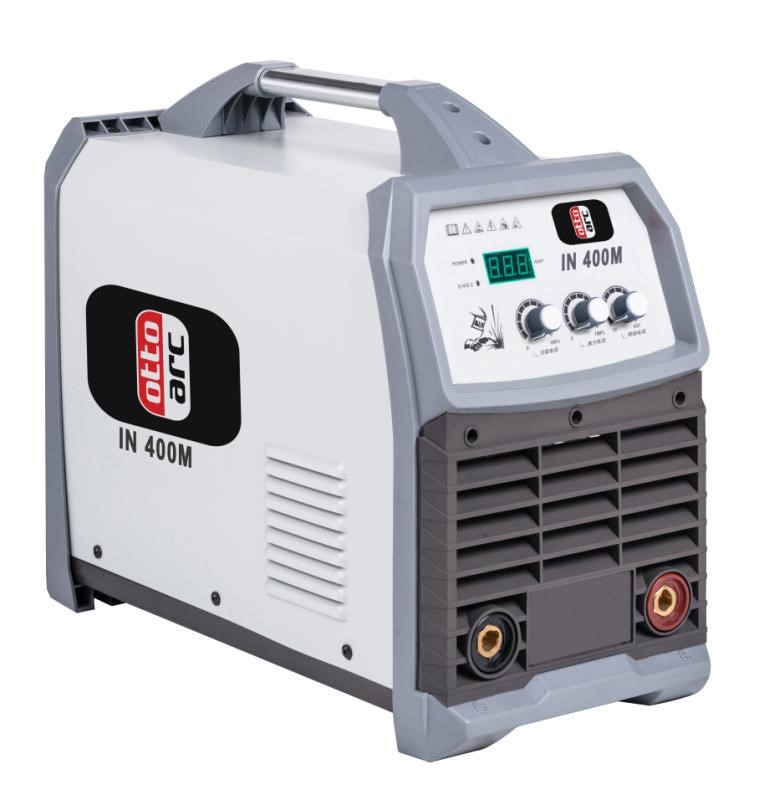

IN-400M

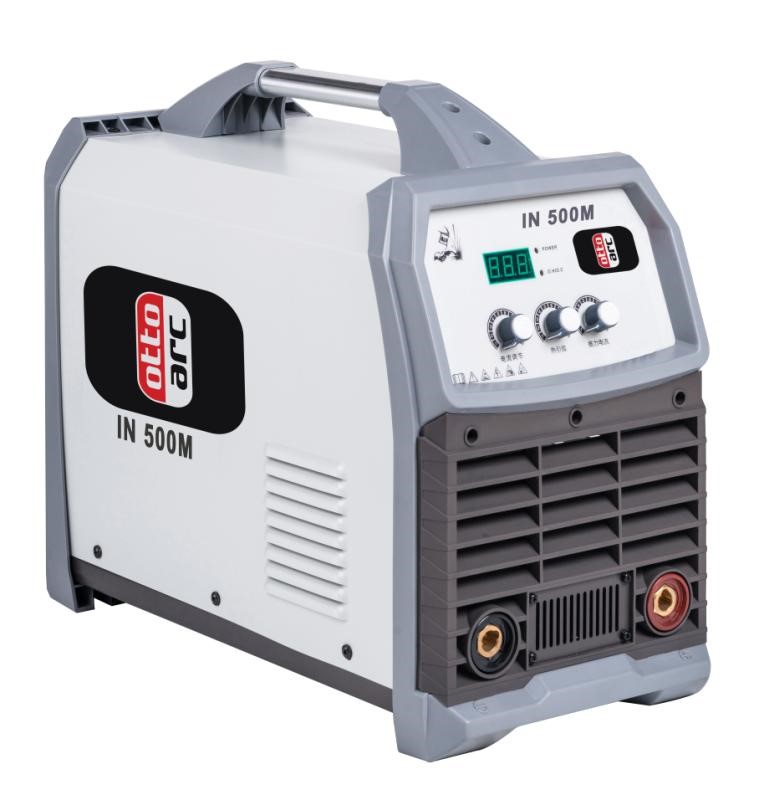

IN-500M

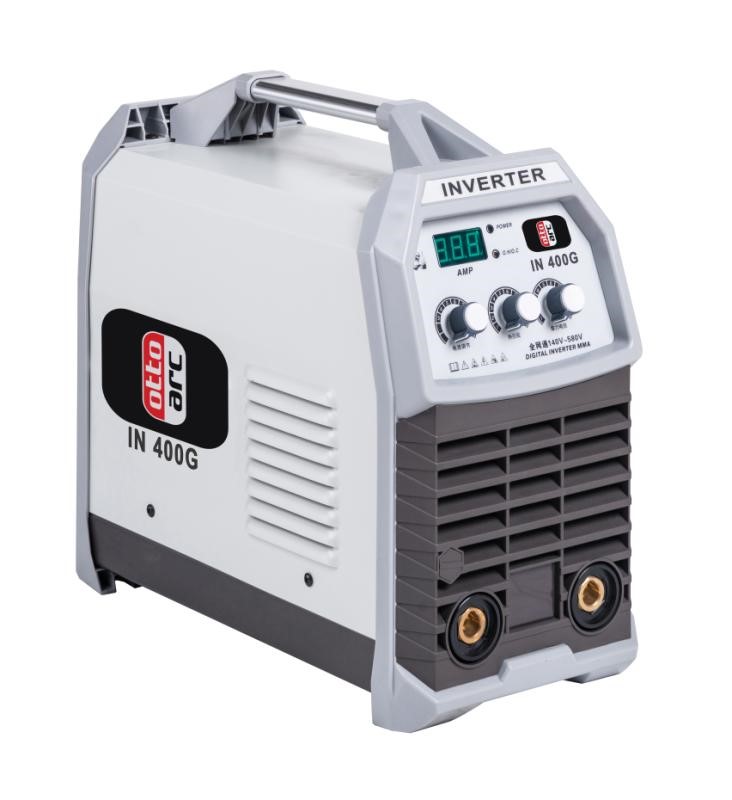

IN 400G

Rated Supply Voltage(V)

230VAC

230/415V 3PH

415V 3PH

380V 3PH

140-580-VAC

No Load Voltage(V)

76/64

78/65

Rated Input Capacity(KVA)

6.6

8.8

7.1

8.8

Rated Welding Current (A)

20-160

20-200

20-170

20-200

20-350

20-400

415VAC -40-250
220VAC-30-160A

Rated Duty Cycle(%)

60%

Insulation Class

IP Code

IP21S

IP23S

IP21S

Applied Electrode

1.6-5.0

1.6-5.0mm

Machine size

340x150x260

400x160x320

415x160x320

520x260x430

385X190X350

N.W

3.5KGS

4.5KGS

7KGS

7.1KGS

22.2KGS

22.6KGS

8.4
