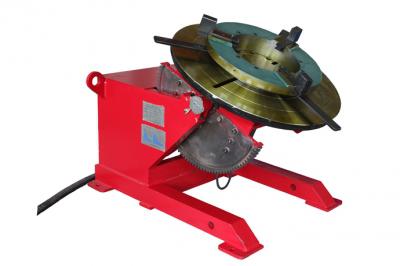

  • Positioner can be used in automatic welding and manual welding for butt joint, end face joint, and welding shaft, plate, barrel and others. Positioners are advantageous in compact structure, attractive appearance, light weight, easy operation and are used as welding auxiliary equipment for pressure vessel, metallurgy, electric power, chemical machinery, metal structure and other industrial applications.
  • >> The base and other welded structures effectively help remove welding stress and avoid deformation in processing.
  • >> There are 4 and more T-shape groove on the positioner table for easy monting of fixtures, such as chuck;
  • >> Be installed with spring conduction device to connect the ground wire to avoid twine of cable;
  • >> Self-lock function, allowing stopping at any position.
  •

    HB250

    HB500

    HB1000

    HB2000

    HB3000

    HB20000

    Maximum Load (kg)

    250

    500

    1000

    2000

    3000

    20000

    Overturn Speed (rpm)

    0.75

    0.6

    0.33

    0.33

    0.65

    0.23

    Range of Vverturn Angle (°)

    Manual 0-120

    Moto-driven 0-135

    Moto-driven 0-120

    Moto-driven 0-120

    Moto-driven 0-120

    Moto-driven 0-90

    Rotation Speed (rpm)

    0.3-5.0

    0.13-1.3

    0.12-1.2

    0.1-1.0

    0.05-0.5

    0.005-0.25

    Table Diameter (mm)

    Φ500

    Φ800

    Φ900

    Φ1100

    Φ1200

    Φ3000

    Maximum Eccentricity (mm)

    50

    150

    150

    150

    200

    200

    Maximum centre of Gravity (mm)

    150

    200

    350

    300

    300

    500
