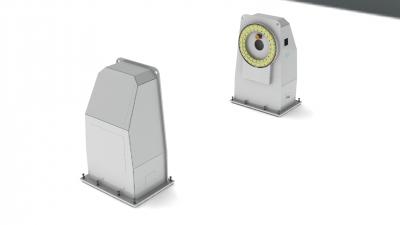

  • The head stock and tail stock can be used for manual welding or automatic welding. It comes with compact structure, good appearance and easy to operate, convenient for the tilting and rotation of the big structure. It’s the ideal welding auxiliary for construction machinery, mining machinery and steel structure.
  • Data will be enter..
  • Specification

    FDVS30

    FDVS50

    FDVS100

    Max. payload (kg)

    3000

    5000

    10000

    Motor power(kw)

    3

    4

    4

    Head stock tilting speed(rpm)

    0.15-1.5

    0.15-1.5



    Speed adjustment

    AC variable speed

    Tilting angle(o)

     ±360°

    Tilting center height(mm)

    1045

    1200

    1350

    Tilting torque(N.m)

    6000

    10000

    100000

    Rotating plate(optional)

    Motor power(KW)

    1.1

    1.5

    3

    Rotation speed(rpm)

    0.06-0.6

    Speed adjustment

    AC variable speed

    Rotation arrange(°)

     ±360°

    Code(standard)

    330501-0000-0000-00

    330503-0000-0000-00

    330505-0000-0000-00

    Code(with rotating)

    330502-0000-0000-00

    330504-0000-0000-00

    330506-0000-0000-00
