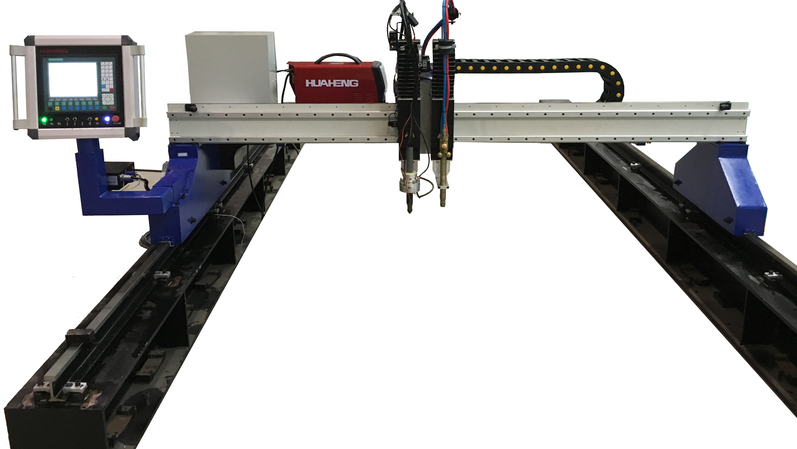

  • Powerful double side longitudinal 24kg rail drive, Heavy duty gantry adopts welded square steel tube structure with stress release by tempering, it has high intensity and rigidity suitable for precise working and excellent cutting output
  • >> Heavy track construction, which maintains accuracy with efficient speed controls.
  • >> Simple HMI for easy operation.
  • >> Multi-language selection, i.e. Chinese, English, French, Russian Portuguese.
  • >> Twin-side longitudinal rack and pinion drive for accurate, reliable performance
  • >> Can take up to four torches (maximum three oxyfuel and one plasma) for higher productivity
  • >> Longitudinal 24kg rail
  • >> Laser Pointer
  • Items Specification
    Effective cutting width A (mm) A=B-500
    Track width B (mm) 2600, 3100, 3600
    Overall width C (mm) C=B+650
    Track length 5m, 7.5m, 10m, 12m, 15m,
    Working length Track length -1500mm
    Max. rapid speed 12000 mm/min
    Cross-over point excursion ±0.5mm
    Circularity ±0.5mm
    Diagonal deflection ±0.5mm
    Linearity ±0.2mm
    Repeat bearing accuracy ±0.2mm
    Power source Suitable Any Air Plasma from 45 Amp To 125 Amp Also use HPR 130 Series.
    Rail Type 24 KG Type
