M90 MAG Tube-sheet Welding Head

This is a specially designed automatic MAG tube to tube-sheet welding system for engineering machinery sleeve. It is fixed by positioner, 3D manipulator or intelligent spring balancer, wide range of localization. It is the first no-twist design for MAG tube to tube-sheet system, smooth in wire feeding, convenient and fast. Application: Boiler, engineering machinery, and so on.

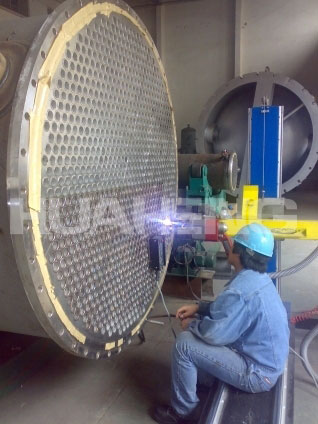

>> Suitable for engineering machinery sleeve welding, boiler tube to tube-sheet and boiler pull bar MAG welding
>> Localizer for wide range positioning
>> No-wire-twist design and special wire feeding design to meet complex single-or multi-layer welding requirements
>> Auto swing during welding
>> Pneumatic locking on manipulator for up/down and left/right moving
>> 15~20KG wire feeding plate, wire diameter:φ1.0 &φ1.2

Material	Carbon steel
Tube OD(mm)	Φ38 ~ Φ260
Rotation speed(rpm)	0.23～4.6
Torch Angle	0°~60°
Protective Gas	Ar
Cooling	Water
Cooling Flow(ml/min)	≥600
Duty cycle	320A 60%
OSC Width(mm)	40
Manual Adjusting Height (up & down) (mm)	40
Wire Diameter(mm)	Φ1.0, Φ1.2(standard)
Weight(kg)	15(no cable)
Dimension(mm)	700×250×240
