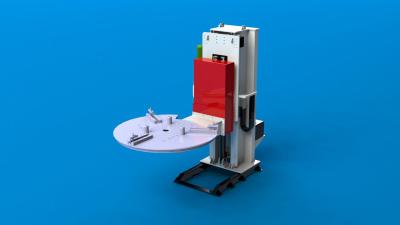

  • The L positioner can be used for manual welding or mechanized welding. It comes with compact struc­ture, good appearance and easy to operate, conve­nient for lifting tilting and rotation of the big structure. It' s the ideal welding auxiliary for construction machinery, mining machinery and steel structure.
  • >> Data will be enter..
  • Specification

    FDS25

    FOS5O

    FDSV20

    FDSV60

    Max. payload ( kg )

    2500

    5000

    2000

    6000

    Max. Rotating Diameter (mm) peed(rpm)

    2600

    3000

    2000

    3200

    Motor power (kw)

    1.1

    2.2

    1.1

    2.2

    Rotating torque (N.m)

    3000

    5000

    10000

    6000

    Rotating speed ( rpm )

    0.05-0.5

    Speed adjustment

    AC varible speed

    Rotating range

    ±360°

    Tilting Specification

    Max. payload ( kg )

    5000

    10000

    5000

    15000

    Motor power (kw)

    2.2

    4

    2.2

    5.5

    Tilting torque ( N.m )

    10000

    18000

    10000

    22000

    Tilting speed ( rpm )

    0.5

    Speed adjustment

    AC varible speed

    Tilting range

    ± 180°

    Lifting stroke ( mm )

    -

    -

    900

    900

    Product Code

    330601-0000
    -0000-00

    330602-0000
    -0000-00

    330701-0000
    -0000-00

    330702-0000
    -0000-00
