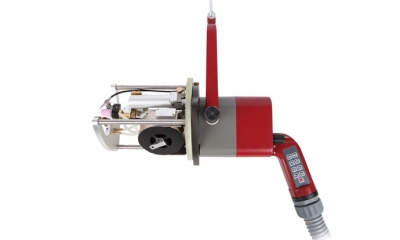

TP8 the Smallest Tube-sheet Welding Head

This welding head is a specially designed TIG welding head for small tube to tube-sheet, suitable for carbon steel, stainless steel, mainly for protruded tube, flush tube and indented tube connection with or without wire feeding. It can weld high protection requirement material such as titanium alloy with tow cover. Support equipment: i-Arc400 Programmable Orbital Welding Power Source. Application: chemical, food, medicine, heat exchanger, power plant, military facility, nuclear facility and so on.

>> High-precision positioner, fast and accurate, suitable for small heat exchanger
>> Auto AVC controlling on or off for manually adjusting
>> Water cooled TIG welding head, convenient to change or adjust tungsten
>> Integrated wire feeding, 1.0KG wire plate.
>> No-wire-twist design and special wire feeding design to meet complex single or multi-layer welding requirements
>> Buttons on handle, convenient to operate.

Material	Carbon steel, stainless steel, titanium alloy(with cover)
Tube OD(mm)	Φ8～Φ32(3/8″～1 1/4″)
Connection	Retract tube, protrusion tube, flush tube
Rotation Speed(rpm)	0.37～7.39
Arc Adjusting Distance(mm)	18
Max Wire Feeding Speed(mm)	1800
Wire Diameter(mm)	Φ0.8
Protective Gas	Ar
Cooling	Water
Cooling flow(ml/min)	≥600
Duty cycle	300A 60%
Weight(kg)	11(no cable)
Dimension (mm)	550×290×510
