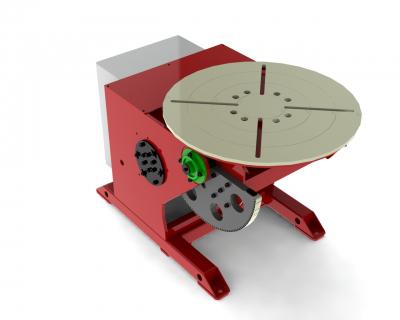

  • The tilting positioner can be used for pipe to pipe, pipe to flange, shafts, disks and cylinders. It’s with good appearance and easy to operate. It’s the ideal welding auxiliary for pressure vessel, metallurgy, electricity power, chemical equipment, metal profile and so on.
  • Data will be enter..
  • Specification

    FB500

    FB1000

    FB3000

    FB5000

    FB10000

    Max. payload(kg)

    500

    1000

    3000

    5000

    10000

    Tilting speed(rpm)

    0.6

    1

    0.2

    Rotating speed(rpm)

    0.13-1.3

    0.12-1.2

    0.05-0.5

    Rotating Speed adjustment

    AC variable speed

    Tilting angle(°)

    Motorized 0-135

    Motorized 0-130

    Rotating plate Diameter(mm)

    Φ800

    Φ900

    Φ1300

    Φ1600

    Φ1800

    Max. eccentricity(mm)

    150

    150

    200

    200

    200

    Max. distance of gravity center(mm)

    200

    200

    300

    300

    400

    Rotating Motor power(kw)

    0.37

    0.75

    1.5

    2.2

    3

    Tilting Motor power(kw)

    0.37

    0.75

    1.5

    2.2

    4

    Code

    330401-0000-0000-00

    330402-0000-0000-00

    330403-0000-0000-00

    330404-0000-0000-00

    330405-0000-0000-00
