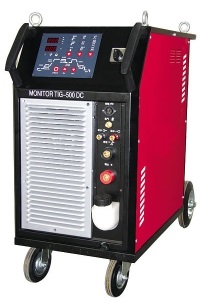

  • The MONITOR TIG welding machine is a reliable power source based on the world's latest IGBT and inverter technology, digital operation screen with function of current soft start, lack phase protection, over heat protection, over load protection, restart memory, water lack protection, self-test of fault and so on. It is suitable for shipbuilding and steel structure installation, such as working inside a metal container and aloft. And it features high compatibility, safety and reliability.
  • >> Digital control, fast response, good performance;
  • >> Industry and engineering design, high performance, duty cycle and adaptive capacity;
  • >> 32bit ARM embedded control system, stable output;
  • >> 8th IGBT, fast, liable and low loss;
  • >> Advanced pulse module of high frequency, increased the reliability of the system;
  • >> Digital operation screen, easy and good repeatability;
  • >> Small, light and durable;
  • >> Arc good concentration for stable welding
  • >> Suitable for low carbon steel, structure steel, steel alloy, stainless steel, nickel alloy, tiranium alloy and copper welding
  • >>Cable can be extension to 100m.
  • >> IP21S protection class, suitable for working outside.
  • >> Wide power net adaptive capacity, stable and good repeatability.
  • >> High efficiency and power factor, power saving 15%~40%.
  • Welding machine

    MONITOR TIG-400 DC
    MONITOR TIG-500 DC
    Voltage
    3 ~380V ±18% 50/60Hz
    3 ~380V ±18% 50/60Hz

    TIG
    TIG
    TIG
    MMA
    Current
    5~400A
    5A~500A
    5A~500A
    50~500A
    Duty Cycle(20°C)
    60%
    60%
    Open Circuit Voltage
    68V
    72V
    Rated Imput Power
    16.2KVA
    22.5KVA
    Power
    90%
    90%
    Power Factor
    0.87
    0.87
    Insulation/Protection Class
    F/ IP23
    F/ IP23
    Enviroment Temperature
    -10℃~+40℃
    -10℃~+40℃
    Cooling
    Air/Water
    Air/Water
    Length×Width×Height (mm)
    1025× 415 × 855
    1025× 415 × 855
    Power Net Weight(KG)
     80
     80
    Tank Capacity(L)
    11
    11
    Coolant Flow(L/min)
    8
    8
    Outlet Pressure(KPa)
    40
    40
    Cooling Power(W)
    1200
    1200
    Pump Power(W)
    60
    60
    Standard
    GB15579/1(EN60974/1),GB/T8118,GB/T8747,CE
