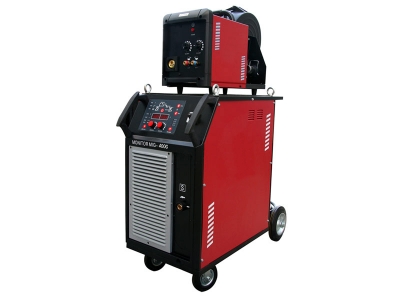

MONITOR MIG Welding Machine


MIG/MAG/CO2 MIG welding machine Digital,inverter-typed,and integrated.

  • The MONITOR MIGS welding machine is a new digital inverter power source after Monitor TIG DC. It is advanced, reliable, stable and qualified mass model, divided into MONITOR MIG-500S water cooling and MONITOR MIG-400G & MONITOR MIG-500G air cooling.
  • >> Built-in intelligent arc system, increase performance of welding arc.
  • >> Digital screen, easy for adjusting.
  • >> Touch press of gas & wire testing, digital luminous tube for displaying of welding parameter>.
  • >> Digital adjusting of Ignition & quenching.
  • >> Memory functions of welding process parameter while welding.
  • >> Real-time display of weldng parameter.
  • >> Wide adjusting range of wire feeding speed.
  • >> IGBT inverter technology, more liable.
  • >> Wheels for convenient of moving.
  • >> Strong cover with IP23 protection class, suitable for working outside.
  • >> 3 layers of dust prevention system, isolating plant dust effectively.

  • Welding Machine

    Monitor MIG-400G

    Monitor MIG-500G

    Monitor MIG-500S

    Imput Voltage

    3×380V±15%  50/60Hz

    3×380V±15%  50/60Hz

    Rated Current

    27A

    34A

    Rated Volume

    16KW

    25KW

    Voltage

    15～48V

    15～48V

    no-load Voltage

    72V

    78V

    Current

    60～400A

    60～500A

    Wire Feeding Speed

    1.5～20m/min

    1.5～20m/min

    Wire Spec

    Ф0.8mm、Ф1.0mm、Ф1.2mm

    Ф1.0mm、Ф1.2mm、Ф1.6mm

    Operation

    2/4 option

    2/4 option

    Rated Duty Cycle 20℃

    60%   400A  34V

    60%   500A   39V

    100%  310A  31.5V

    100%  388A   34V

    Power

    90%

    90%

    Power Fctor

    0.87

    0.87

    Insulation Class

    F

    F

    Protective Class

    IP23S

    IP23S

    Cooling

    Air

    Air

    Welding Machine Dimension

    1060×540×850mm

    1060×540×850mm

    Wire Feeder Dimension

    640×250×400

    640×250×400

    Welding Machine Weight

    72Kg

    75Kg

    Wire Feeder Weight

    16kg

    16kg

    Tank Volume    L

    ――

    ――

    11

    Coolant Flow  L/min

    ――

    ――

    1-4

    Exit Pressure   KPa

    ――

    ――

    Max 40

    Cooling Capacity   W

    ――

    ――

    1200

    Cooling Air  M3/min

    ――

    ――

    10

    Pump Power   W

    ――

    ――

    60

    Manufacture Standard

    GB15579/1(EN60974/1),
    GB/T8118GB/T8748,JB/T7824

    GB15579/1(EN60974/1),
    GB/T8118GB/T8748,JB/T7824
